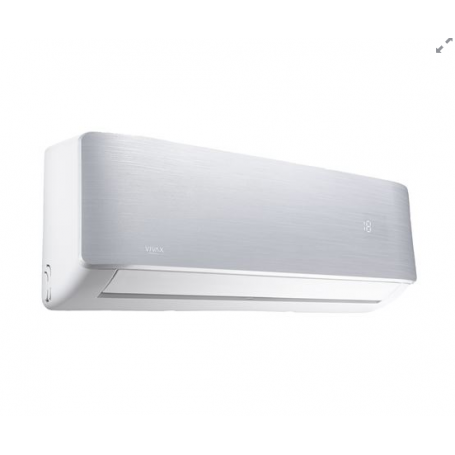

VIVAX COOL, air conditioners, ACP-09CH25AERI + R32 SILVER
VIVAX COOL, air conditioners, ACP-09CH25AERI + R32 SILVER
1250352
Description
VIVAX COOL, air conditioners, ACP-09CH25AERI + R32 SILVER
VIVAX R Design comes in 3 different colors - white, gray and gold. The ionizer emits negatively charged ions, thus attracting particles that float freely in the air and thus destroys particles that are harmful to health. Additional condenser and compressor heaters enable more efficient operation in heating mode and prevent freezing of the outdoor unit at low outdoor temperatures.
VIVAX, ACP-09CH25AERI+ R32 SILVER • TYPE: Mono split system • COOLING: A+++ • HEATING: A++ • COOLING/HEATING CAPACITY: 2.64kW/2.93kW • TYPE OF GAS: R32 • OPERATING AREA: -25°C to 50° C • FUNCTIONALITIES: WiFi ready • WARRANTY: 60 months
Maximum cooling capacity 3.2224
Nominal cooling capacity 2.64 KW
Minimum cooling capacity 1.0257
Maximum heating capacity 3.37
Minimum heating capacity 0.821
Nominal heating capacity 2.93 KW
Refrigerant R32
Energy cooling class A+++
Energy heating class A++
EER coefficient 0
SEER coefficient 9.3
COP coefficient 0
SCOP coefficient 4.6
Estimated load at hla 2.6
Estimated load at gri 2.4
Sound volume at standard in 55 DB
Sound volume at standard in 60 DB
Turbo mode functionality
Golden fin
Ionizer
ECO mode
1W Stand by
I feel function - Follow me
Automatic mode
Night mode
Car swing
Last operating mode memory
Error detection and display
24h Timer
Hidden digital display
Bio filter
Dust filter
Noiseless control
Self-cleaning function
Compressor heater
Condenser heater
Energy saving function
Starting at low voltage
Protective valve cover
Nominal cooling input power 613 W
Nominal heating input power 637 W
Air flow 483 m3/h
Dehumidification capacity 1 L/hr
Noise - UJ 20 dBA
Noise - VJ 54 dBA
Operating area in heating mode -25°C<T<30°C
Operating range in cooling mode -15≤T≤50
Liquid phase tube diameter 1/4
Gas phase tube diameter 3/8
Max. pipe length 25
Max. height difference 10
Pre-loaded pipe length 5
Replenishment of cooling medium 12
Outdoor unit bracket spacing 452
Net dimensions - width 765
Net dimensions - height 555
Net dimensions - depth 303
Net weight 35.3
Device type Inverter
The color of the device is Silver
Warranty period 60
