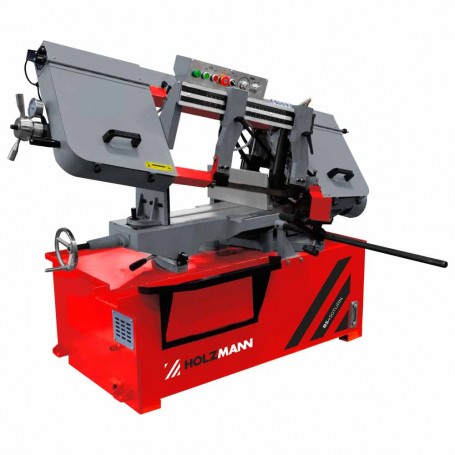

Metal band saw BS450TURN_400V Holzmann Maschinen
Reduced price

Metal band saw BS450TURN_400V Holzmann Maschinen

Metal band saw BS450TURN_400V Holzmann Maschinen

€3,859.00 €4,287.78 -10%
Tax included
 At request

Description

Metal band saw BS450TURN_400V Holzmann Maschinen

Precise metal band saw in heavy design

Cutting angle adjustment vice: L: 0-45°

Cutting angle adjustment saw arm: 0- 45°

Automatic shutdown after cut is completed using a limit switch

Robust vice (support surface to the ground = 644 mm)

Hydraulic lowering cylinder for continuously adjustable lowering speed

Manometer for displaying the saw blade tension

Machine stand with coolant tank (24 l) and coolant pump (25 W)

Scope of delivery: Bi-saw blade (M42) 3300 x 27 x 0.9 mm (TPI 4/6)

Technical details

Motor data

Motor power S1 in W2200

Voltage 400 V / 50 Hz

General dimensions

Installation dimensions in mm 1735 x 1350 x 1090(1700)

Cutting performance

Cutting performance round Ø 90° in mm 254

Cutting capacity round Ø 45° in mm 254

Cutting capacity LxH 90° in mm 380 x 254

Cutting capacity LxH 45° in mm 205 x 254

Cutting capacity square 90° in mm 254

Noise and vibrations:

Sound power level in dB(A)89

Sound pressure level in dB(A) 74.3

Weight

Gross weight in kg 396

Net weight in kg 332

Shipping dimensions

Packaging width in mm 760

Packaging length in mm 1,800

Packaging height in mm 1,140

General data

EAN code

9120132140601

Data sheet

Holzmann Maschinen
112379
9120132140601
9120132140601
