Description

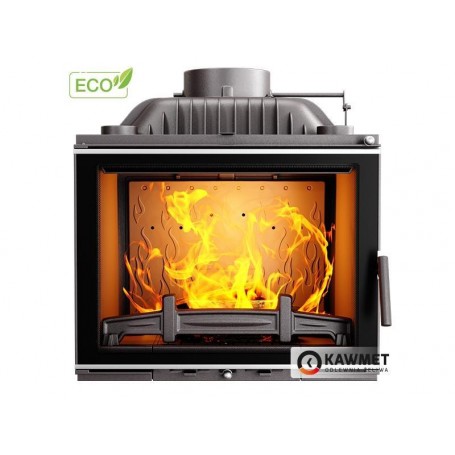

Fireplace insert Kawmet W17 Deco (12,3 kw) ECO
- damper for flue pressure regulation
- partition increasing its efficiency, producing an exhaust path
- decorative screen for the fence, which system of falling wood
- adjusting the air supply through the ash drawer
- external air supply - not part of the complete fireplace
- densely placed ribs, which increases the surface of the upper line change
- a system of transparent glass that directs cold air from the outside to the glass and excessive accumulation of soot
- the smoke afterburning system increases the heating effect of the insert, reduces the emission of greenhouse gases, making the insert more environmentally friendly
- modern design, decorative finish and screen-printed glass
Specifications:
Rated power: 12.3 kW
Efficiency: 71.3%
External dimensions: 600 / 492 (640) / 455 mm
Heating capacity: 123m² / 308m³
Glass dimensions: 573 / 411 / 4 mm
Diameter of flue pipe: 200 mm
Weight: 119 kg
Average exhaust gas temperature: 369.3 ℃
Door: LEFT
Compliance with ECODESIGN standards: YES
Emission of combustion products (CO at 13% O2): 0.13%
Particles (PM mg/m3): 31
Organic gaseous compounds (OGC mg/m3): 117
Carbon monoxide (CO mg/m3): 1670
Nitrogen oxides (NOx mg/m3): 65
Energy Efficiency Index (EEI): 93%
Minimum area of entrance/exit grilles
615 / 923 cm2
Maximum body length (cm): 50
Exhaust gas combustion: YES
Supply of external air: YES
Additional information
ATTENTION: To connect fresh air, you must purchase an air supply
5 YEAR WARRANTY
