Description

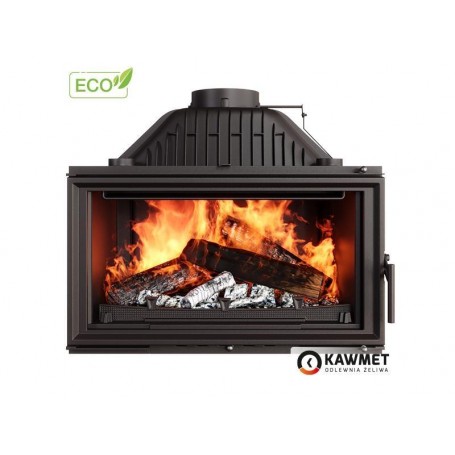

Fireplace insert Kawmet W15 (13,5 kW) ECO
- damper requlating the chimney's thrust
- baffle increasing its efficiency, extending the exhaust path
- decorative fence screen, which prevents wood from falling out
- air intake adjustment through ash drawer
- external air intake - not part of fireplace kit
- densly placed ribs, which increase the heat exchange surface
General info
Nominal rated power: 13,5 kW
Efficiency: 80,4 %
Heating capacity: 135m² / 337m³
Material: Cast iron
Fuel type: Recommended seasoned hardwood (moisture ≤20%)
Phsycal parameters
Physical parameters
Weight: 121 kg
Width: 740 mm
Height: 435 (640) mm
Depth: 425 mm
Main glass dimension L / H / W: 670 / 330 / 4 mm
Flue pipe diameter: 180 mm
Max length of logs: 60 cm
Recommended ventilation area of the air outlet grid / intake grid: 675 / 1013 cm²
Energy efficiency class: A
Energy efficiency index (EEI): 107 %
