Description

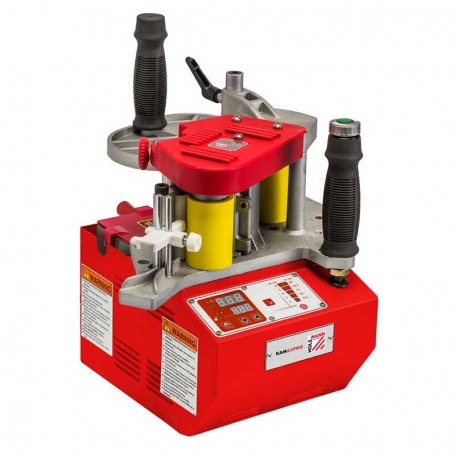

Mobile edge banding machine KAM65PRO_230V Holzmann Maschinen
Highlights
industrial quality
handy, mobile edge banding machine
ideal for installation purpose or useage in workshops
display for temperature control
easily accessible melting tank ensures easy filling with glue granulate
short warm-up time (4 minutes)
uniform glue application
pre-gluing of the edges possible for corner joints
feed continuously adjustable
inside radius min. 25 mm
Technical details
motor data
motor power s1 in W 855
feed speed 2 - 6 m/min
voltage 230V / 50Hz
cable length 5 m
measurements
total dimensions in mm 340 x 300 x 350
fork measurements in mm 5
edge banding
edge thickness in mm 0,4 - 3
edge width in mm 10 - 65
warm-up time 4 min
working temperature in °C 125- 200°C
min. curve radius in mm 25
weight
net weight in kg 8.80
gross weight in kg 9
packaging
packaging height in mm 510
packaging width in mm 430
packaging length in mm 460
